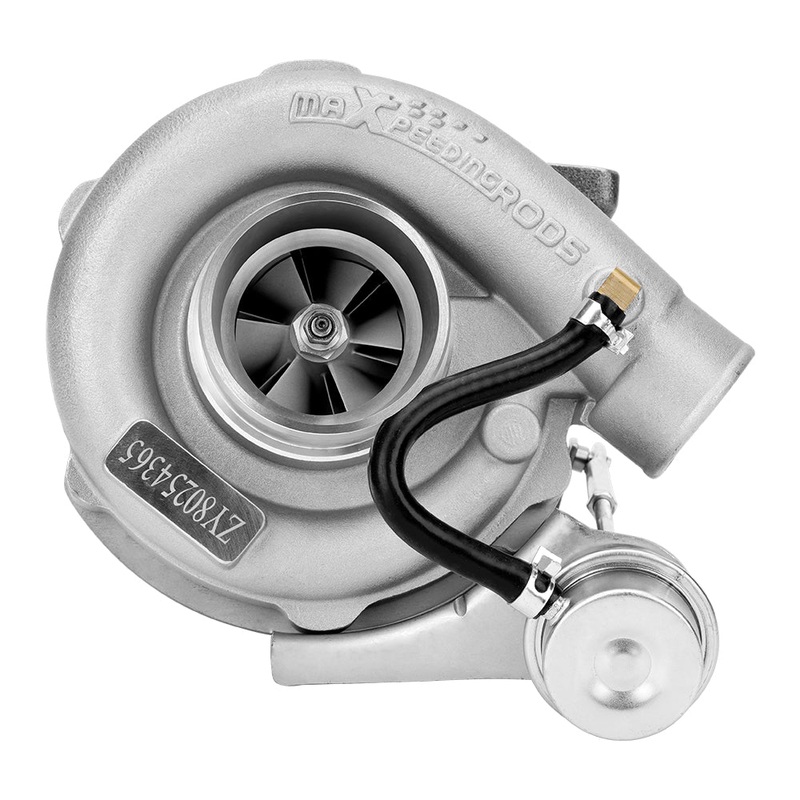

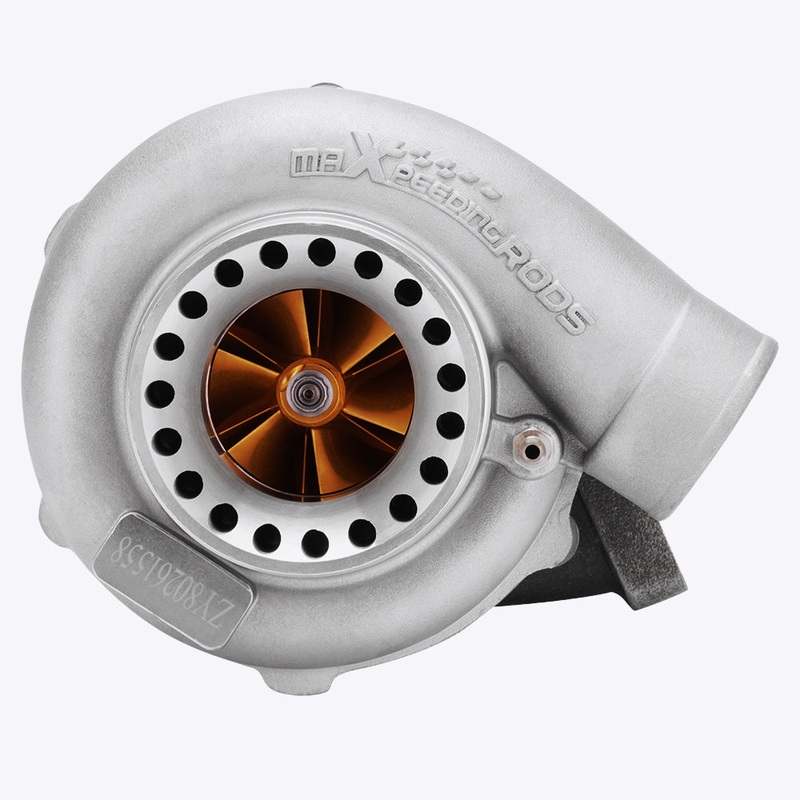

T04E T3T4 turbo .63 A/R Turbo/turbocharger Turbine 5 Bolts Flange COMPRESSOR 400+HP BOOST STAGE III

Details

Introduction

Are you trying to put together a cost effective turbocharger system for your
vehicle? You should know a turbocharged car has about 20-40% more total power
than a non-turbo car of the same year, make and model. Well,
Maxpeedingrodsentry level universal turbogot just what you’re looking for.
Maxpeedingrods aftermarket replacement turbo provide the perfect solution by
delivering a high-quality turbo at a budget-friendly price.

Application

This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine, Horse Power Boost up to
400BHP
Maximum 18PSI

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.63
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet :
Turbine exhaust inlet44.5mm/81mm
Compressor outlet45mm(inside diameter)53mm(Outer diameter)
Compressor inlet68 mm(inside diameter)72mm(Outer diameter)
Oil Inlet: M121.25
Oil Outlet:2M81.25

Feature

Product Material
1\. Turbine housing: Ductile iron qt450-10- temperature resistant up to 700
2\. Steel turbine wheel: K418 alloy – high oxidation stability and resistance
up to 900
3\. Compressor housing: Zl104 aluminium with lightweight
4\. Compressor wheel/blades: Cast aluminium blades superior airtightness
corrosion resistance
Product Performance
1\. Cost-effective turbo increase 20-40% power for your car
2\. Rich experience in turbo production and own factory
3\. Quality assurance
4\. High-speed oil seal ring
5\. Strict quality inspection
6\. Improve emissions save oil
7\. Built for durability and strength
All necessary gaskets included for ease of installation

Advantages

1100% BALANCING TESTThis Turbocharger you will receive has been balanced
using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance
detection technology, and reliability.
2All of the materials we use are the best materials,and we believe that only
the best materials will guarantee the life of the turbo.
Turbine Wheel the special K418 alloy to achieve stability under high
temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing :Ductile iron QT450-10 can withstand temperatures up to 700
degrees Celsius.
3\. Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
4\. Warranty: one year warranty for any manufacturing defect.

Note

Replace, repair or reconnect air cleaner element per manufacturer’s manual to avoid compressor wheel damage.
Professional Installation is Highly Recommended.
Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
