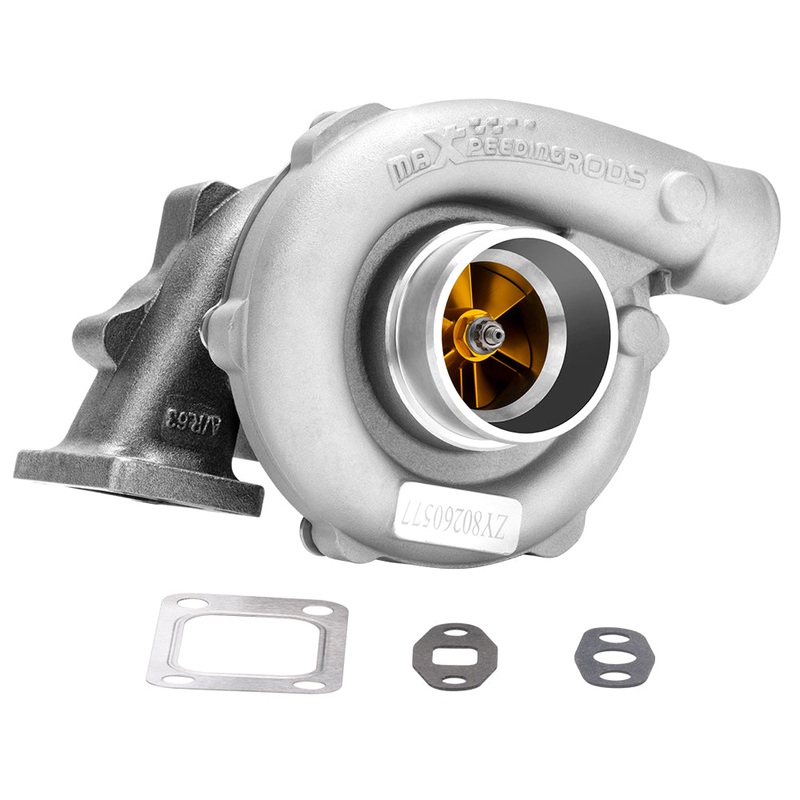

Universal turbo billet compressor wheel turbocharger T3T4 T04E T3 .63 AR Turbine 1.5L-2.5L eng 400HP

Details

This turbo is a universal application and designed for daily street use and
junior track use.
For 1.5L to 2.5L any 4/6 cylinder engine
Maximum 18PSI

Note:Please confirm that your car’s displacement is between 1.5-2.5L .

Please check the size before purchasing and make sure that your car has enough
space to install this turbo.

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

Cooling Type: Oil Cooled

Wastegate: External Wastegate

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet44.5mm/81mm

Compressor outlet45mm(inside diameter)53mm(outer diameter)

Compressor inlet68 mm(inside diameter)72mm(outer diameter)

Horsepower: Up to 400+HP

Condition: New

Package Size:26x 24x 23 cm

Package Weight: 7250g

Product Material

1\. Turbine housing: Silicon-Molybdenum – temperature resistant up to 850

2\. Steel Turbine Wheel: K419 alloy – high oxidation stability and resistance
up to 1000

3\. Compressor housing: ZL104 aluminium with lightweight

4\. Compressor wheel/blades: Aluminum blades-precision machining forging and
lightweight design

Product Performance

1\. Cost-effective turbo increase 20-40% power for your car

2\. Excellent high-temperature resistancehigh efficiency and durability

3\. Rich experience in turbo production and own factory

4\. Quality assurance

5\. High-speed oil seal ring

6\. Strict quality inspection

7\. Improve emissions save oil

All necessary gaskets included for ease of installation

Professional installation is highly recommended (No Instruction Included).

This Turbo is not vehicle specific. It is compatible with a wide range of applications. Therefore please check the specifications and verify compatibility prior to placing your order.
